Hikvision DS-7104HGHI-K1 4-Channel DVR
720P\1080P Lite 4-ch 1 HDD H.265pro+ DVR
Offer Price
₹ 3200.00 /- only
Inclusive of all taxes
GST Invoice Benefit: Get GST Invoice And Save Up To 28% on Business Purchases.
- Availability: in stock
Free Delivery
1 Year Product Warranty
After Sales Support
Secure Transection
Product Description

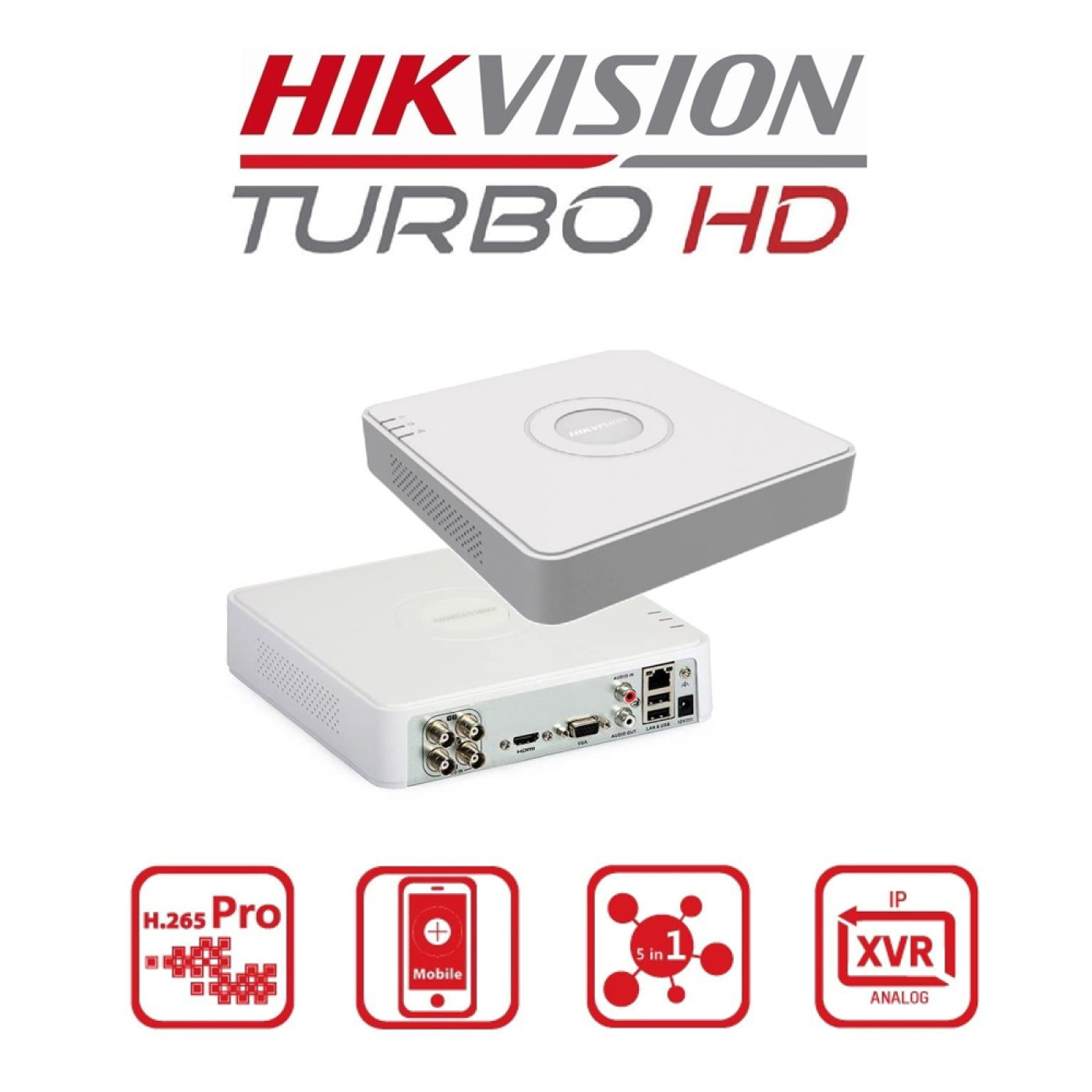

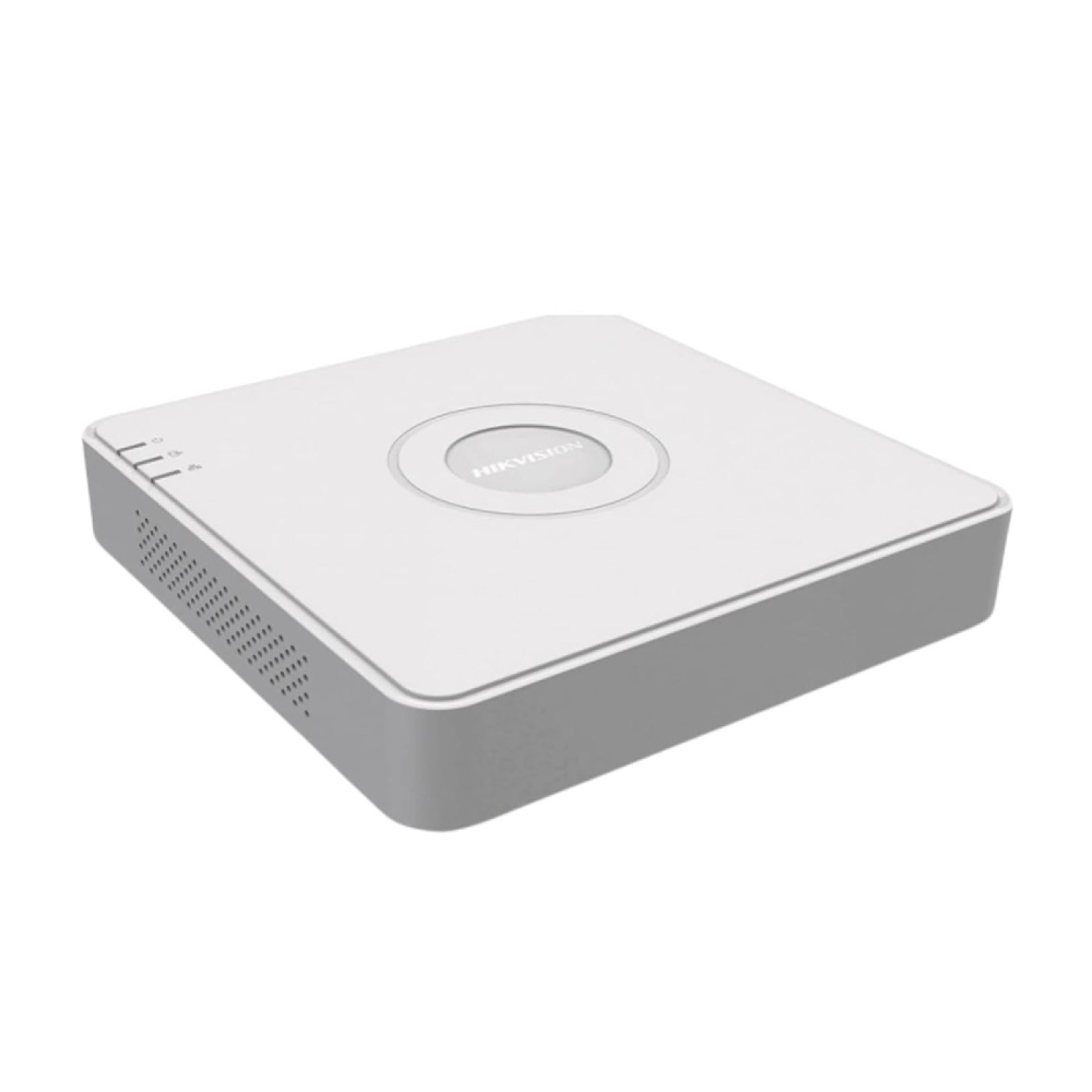

The Hikvision DS-7104HGHI-K1 is a highly compact, next-generation 4-Channel 1080p Lite Mini 1U Digital Video Recorder engineered to manage high-definition analog and IP video streams
We offer this smart storage solution featuring advanced H.265 Pro+ video compression, which multi-folds encoding efficiency and drastically cuts down network bandwidth and data storage costs
The system comes integrated with deep learning-based Motion Detection 2.0 by default across all analog channels, classifying human and vehicle targets while eliminating false alarms triggered by environmental objects like leaves or volatile lighting changes
It provides high-performance utility by supporting up to 5 channels of IP camera inputs with up to 2 MP sharp resolution and accommodates a 5-in-1 hybrid adaptive environment welcoming HDTVI, AHD, CVI, CVBS, and IP video sources smoothly
Equipped with a single internal SATA port managing high-capacity security hard drives up to 4 TB, it supports synchronized 4-channel playback alongside intelligent smart search systems for quick event-tracking tracking
Features native support for smart audio processing, enabling 4 channels of simultaneous audio input via standard coaxial cables alongside dual simultaneous HDMI and VGA monitor output resolutions up to 1920 x 1080
Are you looking to install a robust, highly reliable Hikvision CCTV camera in Surat or looking to upgrade your digital video recording system? We provide professional multi-channel configuration, clean cable optimization, live audio-video synchronizations, and smart remote mobile app streaming setups
Technical Specification
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Analog Video Input | 4-Channel BNC interface (supporting coaxitron connection) |
| Supported Analog Inputs | HDTVI, AHD, HDCVI, CVBS |
| IP Video Input | 1-ch (up to 5-ch), up to 1080p resolution (H.265+/H.265/H.264+/H.264) |
| Encoding Resolution | 1080p Lite / 720p Lite / 720p / WD1 / 4CIF / VGA / CIF |
| Main Stream Frame Rate | 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF @ 25 fps (P) / 30 fps (N) |
| Video Bitrate range | 32 Kbps to 4 Mbps |
| Audio Compression Type | G.711u (64 Kbps Bitrate) |
| Audio Input Interface | 1-ch RCA & 4-ch via Coaxial Cable |
| Synchronous Playback | 4-Channel local playback |
| SATA Hard Drive Interface | 1 SATA Interface |
| Smart Analytics | Deep learning-based human/vehicle classification (Motion Detection 2.0) |
| Storage Disk Capacity | Up to 4 TB capacity for each storage disk |
| Video Display Outputs | 1-ch HDMI & 1-ch VGA simultaneous output (up to 1920x1080) |
| Network Interface Port | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Remote Connections Max | Up to 32 remote active sessions |
| USB Connectivity Ports | Rear panel: 2 x USB 2.0 |
| Power Supply Adapter | 12 VDC, 1.5 A |
| Energy Power Consumption | Less than or equal to 16 Watts (Without HDD connected) |
| Working Environment Temp | -10 °C to 55 °C (14 °F to +31 °F) |
| Chassis Dimensions | 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch) |
| Net Structural Weight | Less than or equal to 0.8 kg (Without HDD installed) |
Support & Downloads
PDF Catalogue: Download
Warranty: 2 year Product Warranty
